Featured
Select a project-ready platform
Single Capsule Pods
Compare seven single-person capsule series by dimensions, entrance, layout and equipment. Plan single occupancy in one or two approved deck levels.
Need help selecting?Talk to a project specialist
Single-guest series selection
Narrow seven series to two candidates
Each listed series is for one person per pod. A single-person pod can still be installed in a two-level set where its drawing and the room permit it. Dimensions below are one named model's horizontal outer size, not usable interior size or room clearance.
| Series | Example outer size | Reason to inspect | Model detail |
|---|---|---|---|
| GY86 | GY861-A: 2132 × 1080 × 1513 mm | Simple Beauty shell; A opening can be horizontal or vertical, B is horizontal | Compare models ↗ |

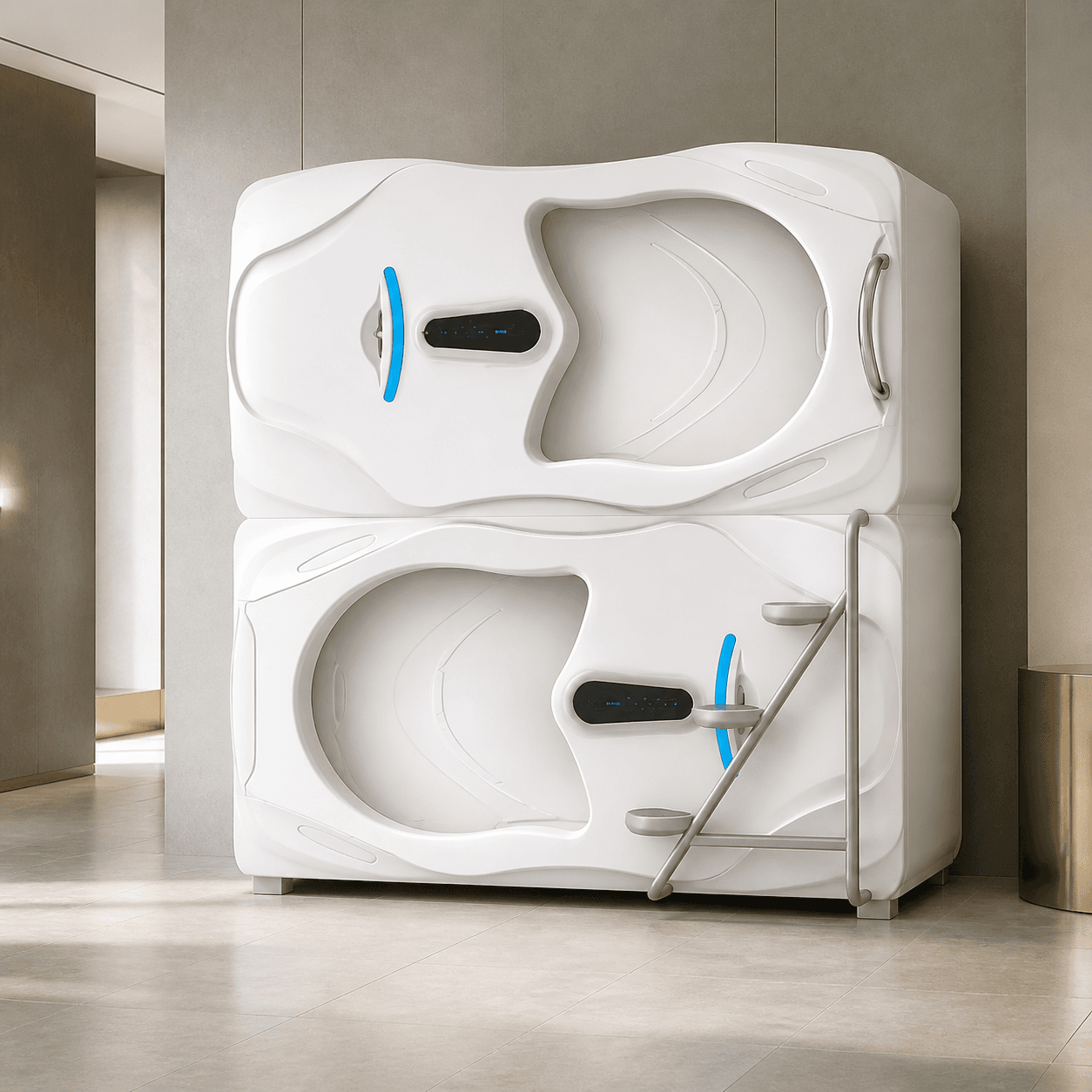

| GY00 | GY001-A: 2200 × 1120 × 1513 mm | Simple Beauty family with A/B openings and horizontal or vertical planning by model | Compare models ↗ |

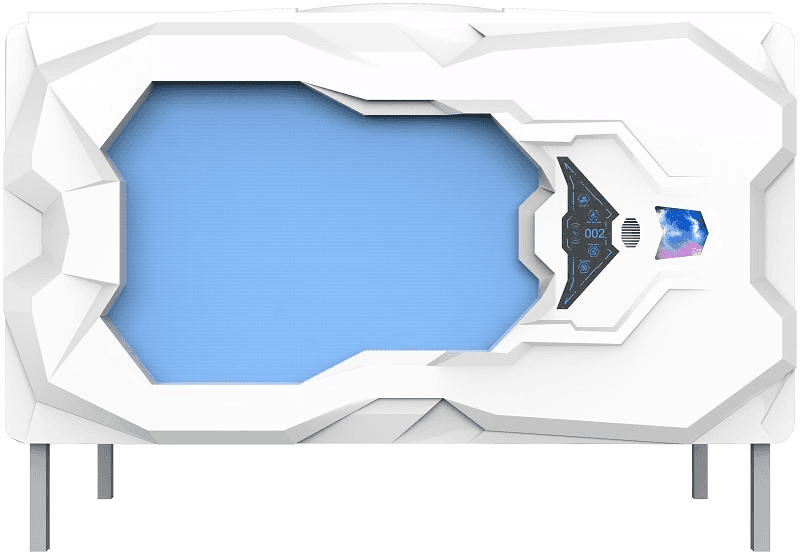

| GY10 | GY101-A: 2200 × 1125 × 1513 mm | Technology-style family; A can be horizontal or vertical, B is horizontal | Compare models ↗ |

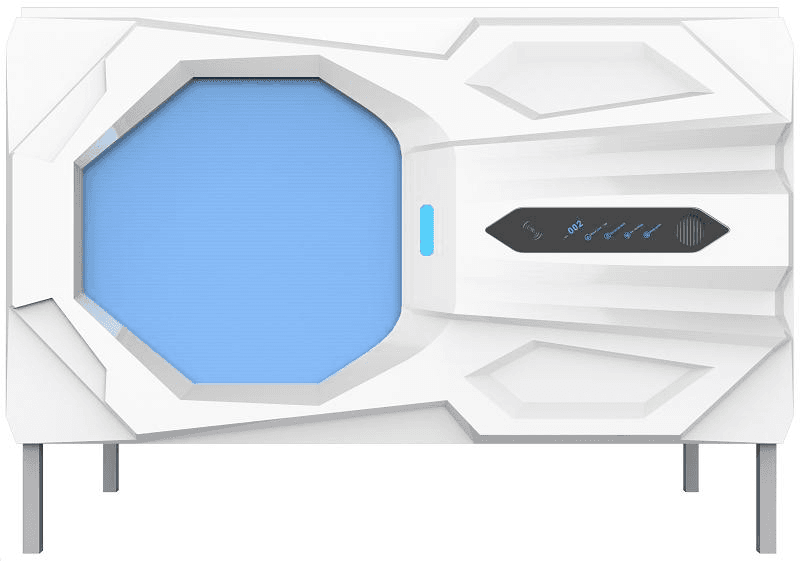

| GY20 | GY201-A: 2170 × 1280 × 1513 mm | Horizontal-only technology family; check the wider internal envelope | Compare models ↗ |

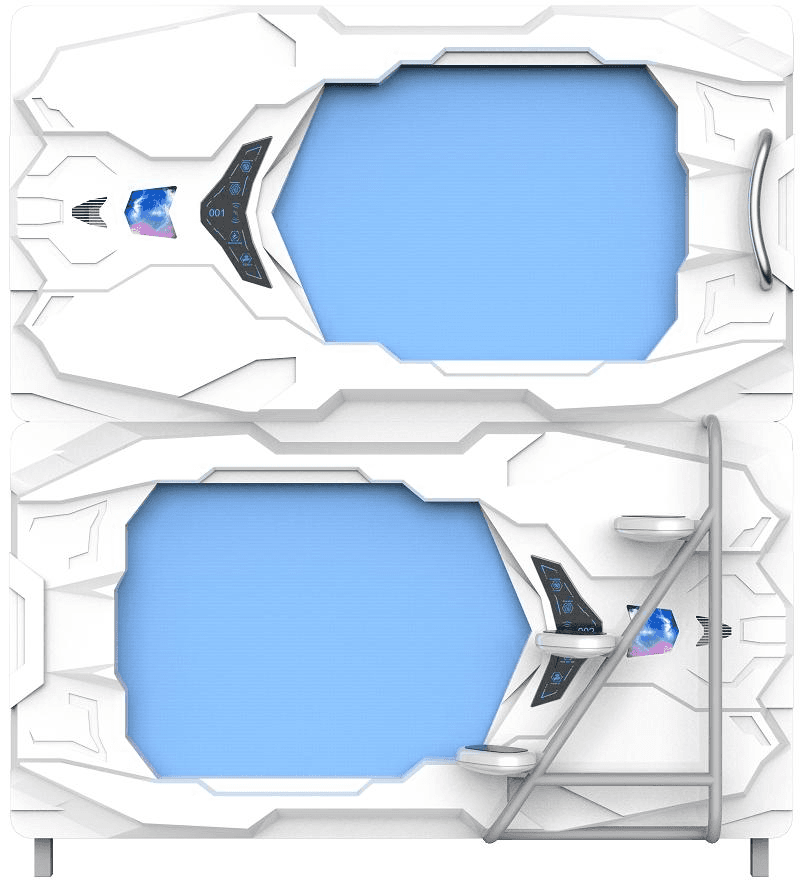

| GY30 | GY301-A: 2200 × 1320 × 1513 mm | Large single-person technology family; check delivery and room clearance | Compare models ↗ |

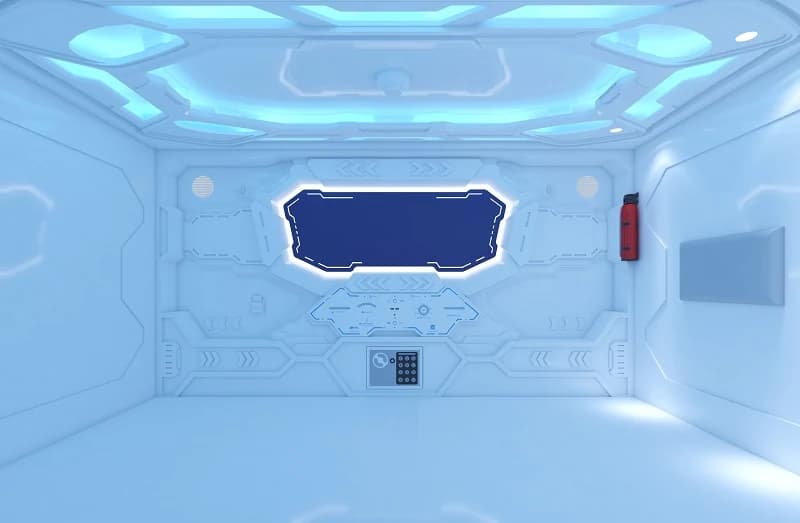

| GY81 | GY811-A: 2200 × 1274 × 1513 mm | Technology family with A/B/C opening choices | Compare models ↗ |

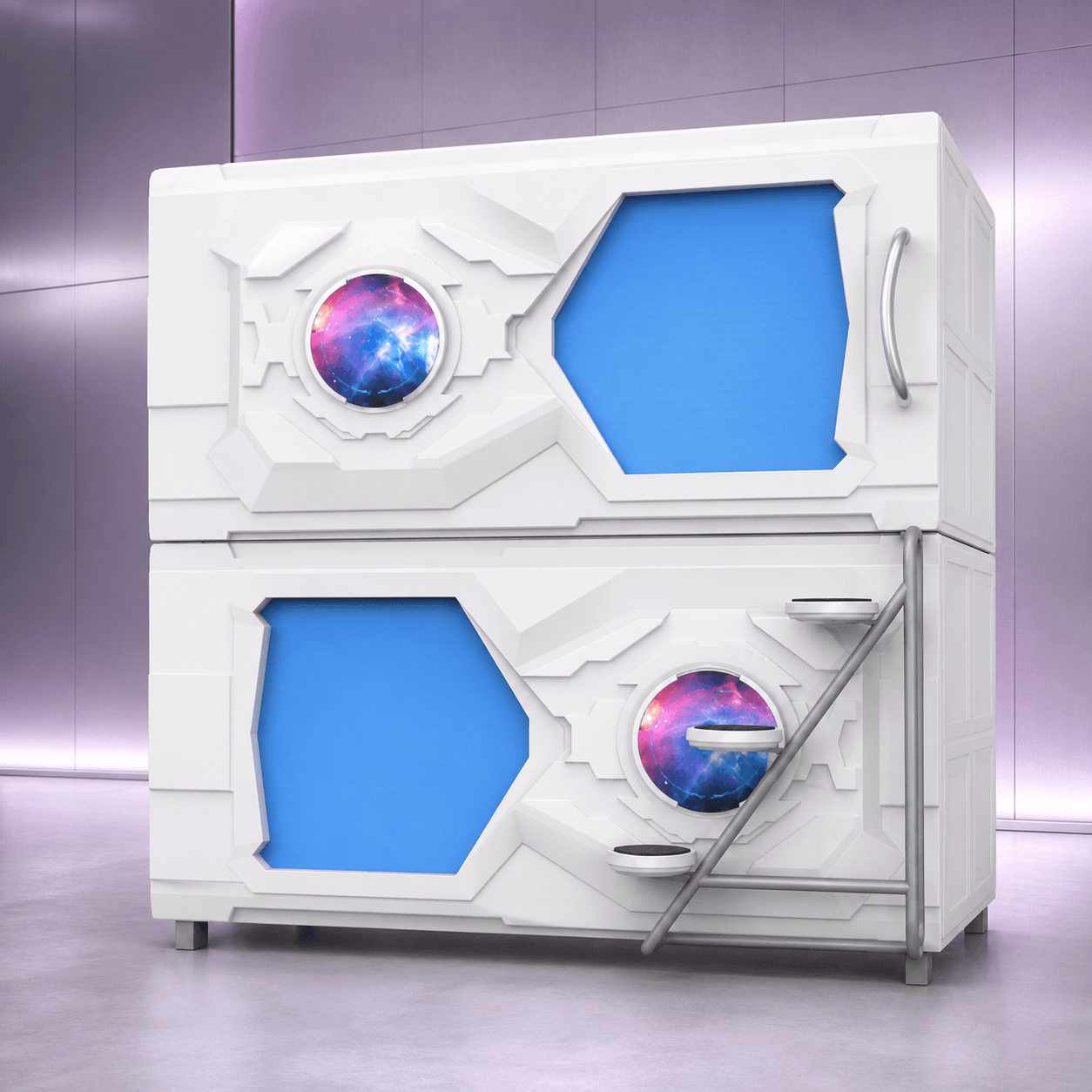

| GY88 | GY881-A: 2002 × 1080 × 1395 mm | Compact horizontal technology family | Compare models ↗ |
First eliminate series that do not fit the measured room and entry direction. Then compare two candidates by opening, layout, internal size and confirmed equipment on their series pages. Final two-level height, ladders, doors, circulation and services require a project drawing.
Compare Single Capsule Pods before choosing a series
Use the series structure to shortlist a direction, then review the variant matrix and dimensions on the series page.
| Series | Occupancy | Published variants | Supported layouts | Opening options | Next step |
|---|---|---|---|---|---|
| GY86 — Single Capsule Pods↗ | Single guest | 6 | Horizontal / Vertical | Half-open / Two-thirds-open | Review series→ |
| GY81 — Single Capsule Pods↗ | Single guest | 9 | Horizontal / Vertical | Half-open / Two-thirds-open / Wide-open | Review series→ |
| GY88 — Single Capsule Pods↗ | Single guest | 2 | Horizontal | Half-open | Review series→ |
| GY00 — Single Capsule Pods↗ | Single guest | 6 | Horizontal / Vertical | Half-open / Two-thirds-open | Review series→ |
| GY10 — Single Capsule Pods↗ | Single guest | 6 | Horizontal / Vertical | Half-open / Two-thirds-open | Review series→ |
| GY20 — Single Capsule Pods↗ | Single guest | 6 | Horizontal | Half-open / Two-thirds-open | Review series→ |
| GY30 — Single Capsule Pods↗ | Single guest | 6 | Horizontal / Vertical | Half-open / Two-thirds-open | Review series→ |
What is common—and what still needs confirmation
These category-level fields are suitable for initial sourcing. Variant dimensions, finishes, material grade and interfaces remain configuration-specific.
Construction
ABS outer shell + metal structural frame; ABS grade confirmed for the selected configuration
Electrical
110–240 V AC input · 12 V low-voltage cabin system
Cabin airflow
Adjustable circulation · approximately 30 m³/h
Warranty
2 years · scope, start date and exclusions confirmed in the quotation
Before quotation
Information the buyer must provide
A usable quotation and layout review depend on the room, quantity, utilities, delivery access and requested configuration.
- room dimensions and ceiling height
- required pod quantity and deck count
- preferred orientation and opening direction
- local input voltage and socket standard
- room ventilation conditions
- delivery access dimensions
- requested color and material grade
Commercial terms
Confirmed Ordering & Delivery Terms
Use these published terms as the starting point for a GEELYE quotation. The selected model, configuration, named port and final order scope are confirmed in the quotation.
Review Certification Scope ↗Published material and component documents do not certify the complete pod.- MOQ
- 1 set
- Trade term
- FOB
- Sample lead time
- 15 days
- Bulk lead time
- 15–30 days
- Sample
- Sample fee required
- Packaging
- Paper-based packaging
- Installation
- Customer installation · video provided
Include with your inquiryProduct type or series, estimated quantity, destination or named port, room dimensions or plan, required configuration and target schedule.
Request a Product QuotationResources
Resources for Better Purchasing Decisions
Use product information, application guidance, project references and technical support to prepare your procurement.
Planning a Commercial Capsule Bed or Sleep Pod Project?
Share your application, estimated quantity, room dimensions and destination. We will help identify relevant product formats and the next practical step.
